9 Things You Need to Know about Aluminum Honeycomb Panel

Aluminum honeycomb panel is a honeycomb sandwich plate with honeycomb structure as its core, which is inspired by the natural hexagonal honeycomb. The unique honeycomb structure makes its weight lighter than other materials in the same volume, and the stiffness and overall stability is very good as well, what’s more, aluminum honeycomb panel also has the advantages of sound insulation and heat insulation.

Aluminum alloys are non-radioactive, non-volatile, and fully recyclable. The material can be recovered and reused at the end of its service life, helping reduce raw material consumption, conserve energy, and minimize environmental impact. For these reasons, aluminum honeycomb panels are increasingly recognized as energy-efficient, environmentally responsible, and safe building materials.

Compared with many traditional panel materials, aluminum honeycomb panels offer the following advantages:

1. Lightweight and low density.

The core of an aluminum honeycomb panel features a regular cellular structure composed of continuously arranged polygonal cells. This design minimizes the amount of solid material within the panel and significantly reduces its overall density compared with many conventional sandwich materials.

At the same volume, aluminum honeycomb panels are much lighter than common laminates, steel sheets, and solid aluminum plates. Their weight can be approximately 9% of an FRP laminate, 11% of a steel sheet, and 23% of a solid aluminum alloy sheet. This excellent strength-to-weight performance helps reduce structural loads and energy consumption, especially in aircraft and transportation applications.

With their low density and lightweight construction, aluminum honeycomb panels meet the growing demand for energy-efficient, environmentally responsible, and lightweight materials in aerospace engineering, aviation, rail transit, and other transportation industries.

2. High strength and good rigidity.

According to mechanical analysis, the structure of honeycomb panel is connected with each other like I-beams. The skin sheet bears the in-plane load like I-beam flange, function of honeycomb core is similar to the web of I-beam, bearing shear stress, connecting and support both skin sheet. However, different with I-beam web, the honeycomb core is not a thin rib but a dense reinforcement. The core layer is bonded to the entire surface of the board, and the height of core layer is much larger than the thickness of skin sheet, which makes section inertia moment multiplied, the overall stability is also increased while the overall stiffness is increased.

3. Good impact resistance and vibration damping.

When the honeycomb panel is subjected to external impact, the impact force can be converted into the plastic deformation energy of the honeycomb core, therefore, impact energy can be effectively absorbed. Through the self-dropping ball impact test on the aluminum honeycomb panel, there is no crack by inspecting dent area and depth of impact site, it indicate that the toughness of the aluminum honeycomb panel is better and the impact resistance is stronger, and most of the energy can be absorbed by its own deformation. The damping effect is good.

4. Sound insulation and heat insulation.

The material used to produce the honeycomb panel itself has no heat insulation and sound insulation properties, aluminum is a good conductor of heat and sound. However, the unique structure of the honeycomb panel makes it has good heat insulation and sound insulation performance.

The honeycomb core is formed by a cellular structure in which hexagonal cavities occupy most of the internal space. For example, in a honeycomb panel measuring 51.96 × 48.00 × 12.20 mm with a core foil thickness of 0.1 mm, the solid material accounts for only about 4% of the total volume.

After the honeycomb core is bonded to the outer skin sheets, the internal cells form numerous sealed hexagonal columns. These enclosed air pockets restrict air circulation between the face sheets, making heat transfer and convection more difficult. At the same time, the cellular structure limits the transmission of sound waves through the panel.

As a result, aluminum honeycomb panels provide reliable thermal insulation and sound insulation performance, making them suitable for building interiors, transportation equipment, clean rooms, partition systems, and other applications requiring lightweight insulation materials.

5. Non-combustible and moisture resistance.

The aluminum panel is made of aluminum plate and aluminum honeycomb core. The aluminum alloy is a non-combustible material, which plays a good role in fire retardant and fire protection. In addition, the aluminum alloy itself has good chemical stability, corrosion resistance, and moisture resistance.

6. Good formability and optional thickness.

The thickness of the honeycomb aluminum panel can be selected at 6mm-100mm according to actual needs, and the shape can also be made into a flat plate, a single curved panel or a double curved panel according to specific requirements. Honeycomb aluminum panel not only has good formability but also is not easily deformed after forming.

7. No pollution, energy saving and environmental protection.

The raw material of aluminum honeycomb panel is aluminum alloy, which is not radioactive and does not volatilize any harmful gases. Honeycomb panels can also be completely recycled, saving resources and energy, and meeting the requirements of energy saving and environmental protection. In addition, the honeycomb panel reduces the load of the transportation vehicle, improves the power, reduces the fuel consumption, and exhaust pollution while saving energy.

8. Beautiful appearance and easy to clean.

The skin sheet of honeycomb panel can be used directly (mill finish) or coated with different colors or patterns. (RAL color, wooden patterns or even stone patterns)

9. APPLICATION

1. For Architecture

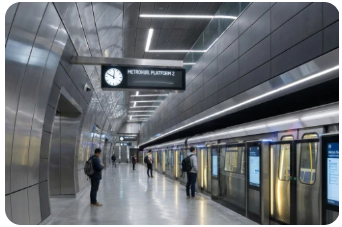

In the field of construction, aluminum honeycomb panels are often used to make ceilings for subway stations, large shopping malls, conference rooms, curtain walls, louvers and roofs for high-rise buildings, as well as screen dividers, soundproof panels, portable mobile homes for banks and hotels. The aluminum honeycomb panel not only has a good decorative effect but also can utilize the characteristics of vibration damping to reduce the casualties and property losses caused by the earthquake.

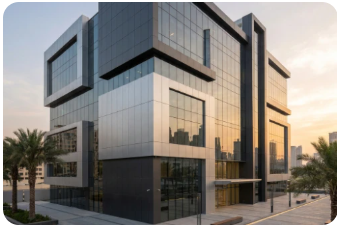

(honeycomb panel for Building Facades)

(honeycomb panel for Transportation)

2. For Aviation, ships, high-speed vehicles

Due to the above advantages, aluminum honeycomb panels are widely used in aviation, aerospace, transportation, construction, military and other areas. For example, Used for rocket fairings, aircraft wings and warehouses, train bulkheads and floors, car skins and doors, ceilings and curtain walls for building., In application of wings and vertical tail, as well as the cockpit, cargo floor, and the door partition or cargo compartment, The honeycomb panels can effectively reduce the weight of aircraft and improve the handling sensitivity of moving parts.
