Aluminum Composite Panel

Aluminum Composite Panel (ACP) is a sandwich-structured sheet consisting of two high-strength aluminum alloy face sheets bonded to a low-density polyethylene (LDPE) core or a fire-retardant mineral core through a high-temperature, high-pressure lamination process. The “aluminum skin – core – aluminum skin” structure combines the weather and corrosion resistance of aluminum with the lightweight and flatness characteristics of the core.

Inquire Now

Product Description

Aluminum Composite Panel (ACP) is a sandwich-structured sheet consisting of two high-strength aluminum alloy face sheets bonded to a low-density polyethylene (LDPE) core or a fire-retardant mineral core through a high-temperature, high-pressure lamination process. The “aluminum skin – core – aluminum skin” structure combines the weather and corrosion resistance of aluminum with the lightweight and flatness characteristics of the core.

The typical structure consists of:

Face Sheets: Aluminum alloy (commonly 1100, 3003, etc.), thickness 0.12-0.50mm, chromated for enhanced adhesion

Coating: PVDF fluorocarbon (70% Kynar 500®) or polyester (PE) coating, providing color and weather protection

Core: Low-density polyethylene (LDPE) for standard type, or A2-grade mineral-filled core for fire-retardant type

Protective Film: Peel-off film to protect the surface during fabrication and installation

Aluminum Composite Panels combine lightweight, high strength, excellent flatness, easy workability, rich color options, and optional fire resistance, making them an ideal upgrade over traditional solid aluminum, stone, wood, and other building materials. Widely used in building facades, interior decoration, signage, transportation, and more.

Product Specifications

Parameter	Specification Range	Notes
Total Thickness	2mm, 3mm, 4mm, 5mm, 6mm	Common 3mm and 4mm
Aluminum Skin Thickness	0.12mm – 0.50mm	Common 0.21mm, 0.30mm, 0.40mm, 0.50mm
Aluminum Alloy	1100 / 3003	3003 offers higher strength
Core Material	LDPE (standard) / Mineral-filled (A2/B1 fire-retardant)	Fire-retardant core achieves A2 non-combustible
Panel Width	1000mm, 1220mm, 1250mm, 1500mm	Customizable
Panel Length	2000mm – 6000mm	Common 2440mm, 3050mm, 4000mm
Coating Type	PVDF / PE / FEVE	PVDF offers best weather resistance
Coating Thickness	PVDF ≥25μm / PE ≥16μm	Complies with industry standards

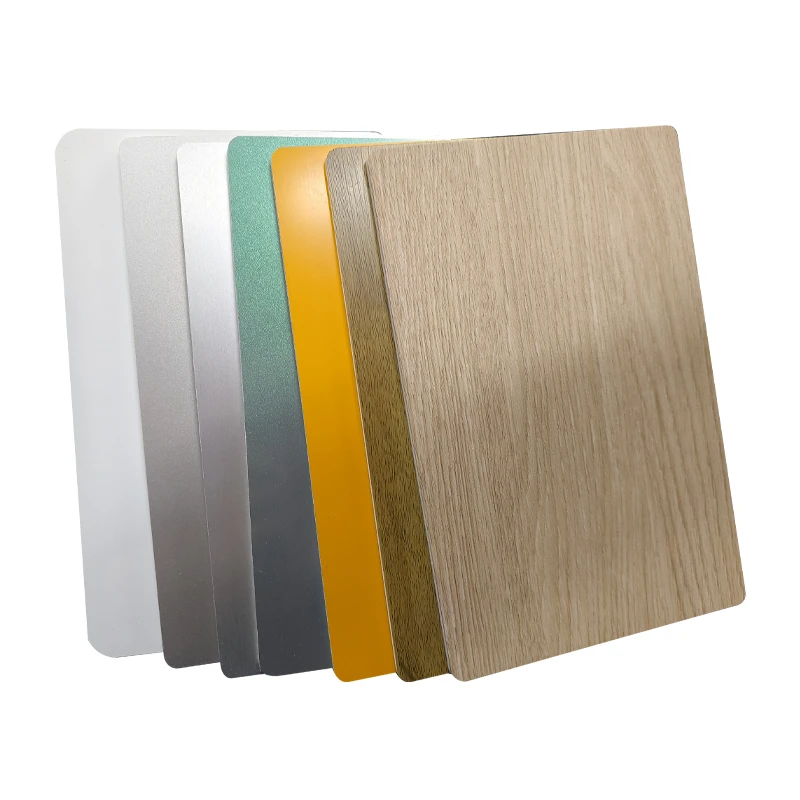

Color	Solid, metallic, brushed, wood grain, stone grain	Customizable to any RAL code
Gloss Level	10% – 90%	Matte, semi-gloss, high-gloss
Fire Rating	Class B2 (standard PE) / Class B1 (FR) / Class A2 (non-combustible)	Fire-retardant core achieves A2
Density (3mm standard)	1.2 – 1.8 kg/m²	Approx. 3.5-5.5 kg/m² for 4mm
Flatness	≤2mm/m	Smooth, ripple-free surface
Temperature Resistance	±50°C	No blistering, no delamination
Installation Method	Riveting, screw fixing, dry-hanging, adhesive	Flexible options

Key Advantages & Features

01 Lightweight & High Strength

ACP weighs only about 60% of solid aluminum sheet (3mm panel approx. 3.5-5.5 kg/m²), yet provides sufficient wind load and impact resistance, significantly reducing building load and transport costs.
02 Excellent Flatness

The sandwich structure eliminates the “oil-canning” effect common in solid aluminum sheets. Panels are smooth and flat, ideal for large-area applications with superior visual effect.
03 Rich Color Options

Roll-coated with PVDF or PE for uniform, long-lasting color. Available in solid, metallic, brushed, wood grain, stone grain, and other finishes, meeting diverse architectural design styles.
04 Weather & Corrosion Resistant

PVDF fluorocarbon coating offers excellent resistance to UV radiation, acid rain, and salt spray. Service life exceeds 20 years—no fading, chalking, or peeling.
05 Optional Fire Ratings

Standard PE core achieves Class B2; fire-retardant PE core achieves Class B1; mineral-filled core achieves Class A2 non-combustible, meeting fire safety requirements for different building types.
06 Easy to Fabricate

Can be cut, drilled, routed, grooved, bent, and curved using standard woodworking tools. Ideal for complex shapes and custom designs with low fabrication cost.
07 Green & Eco-Friendly

Aluminum skins and PE core are recyclable. No formaldehyde, benzene, or other harmful emissions during production. Meets green building material standards.
08 Quick Installation

Flexible installation methods including riveting, screw fixing, dry-hanging, and adhesive mounting. Fast construction, effectively shortening project timelines.

Choose the Right Partner for Your Floor

SPC floors come in a variety of colors and patterns, including wood/marble/carpet patterns, so it's easy to find the right style for your business and project.

Contact Us

Applicable Scenarios

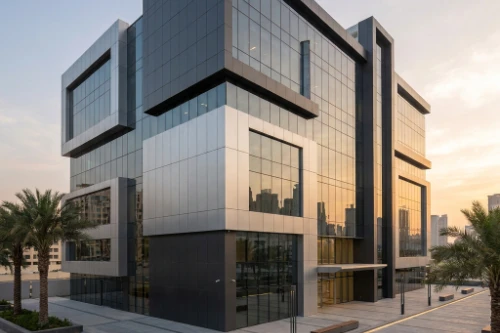

Building Facades

High-rise curtain walls, podium cladding, exterior renovation of old buildings;

Lightweight, flat, weather-resistant, rich colors.

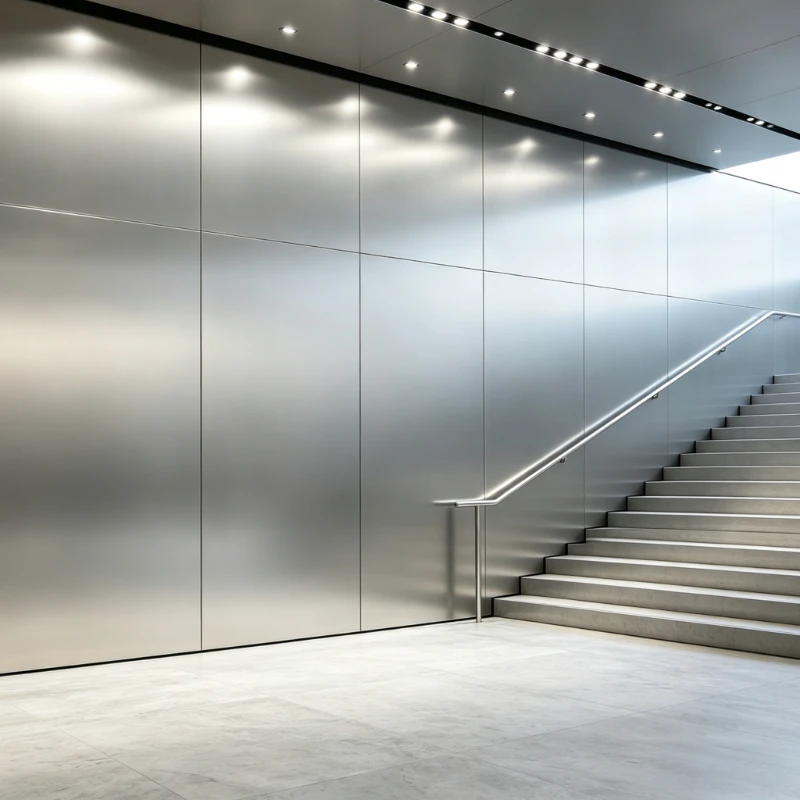

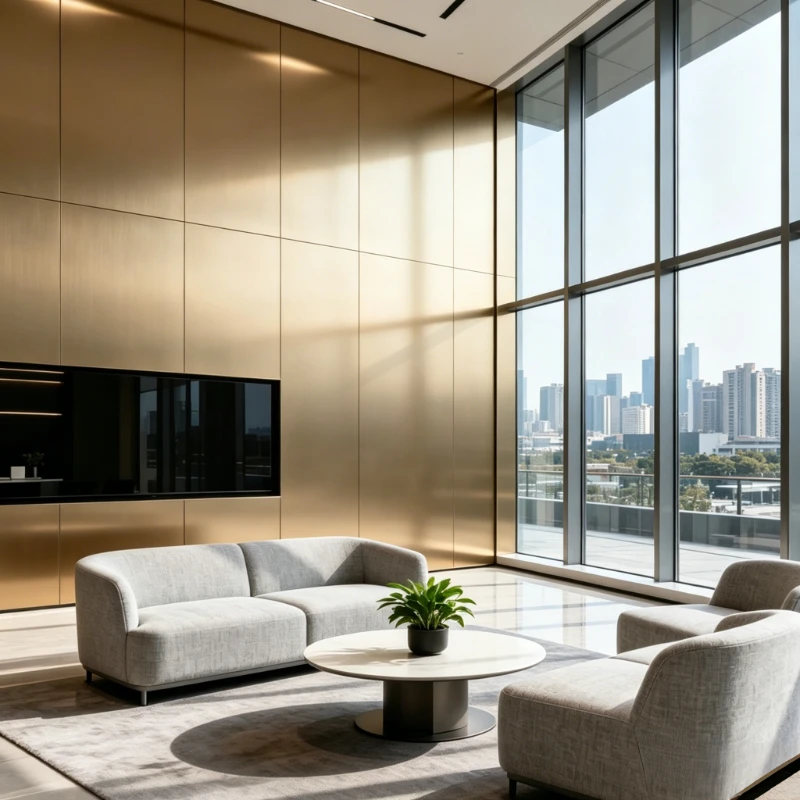

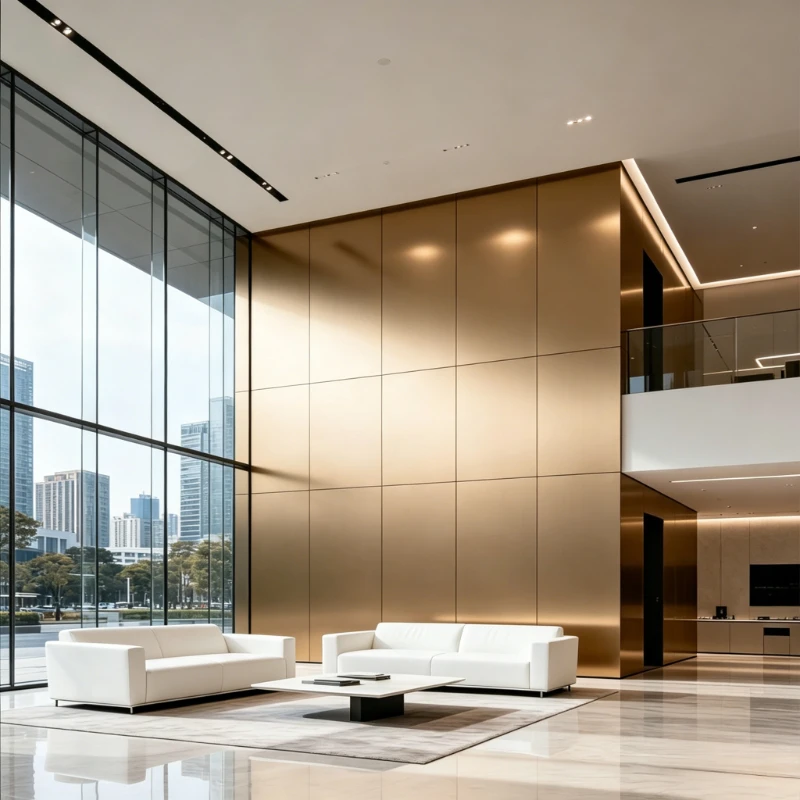

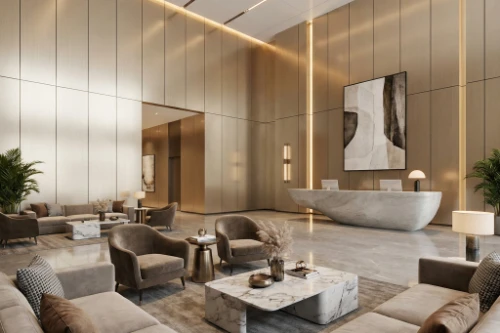

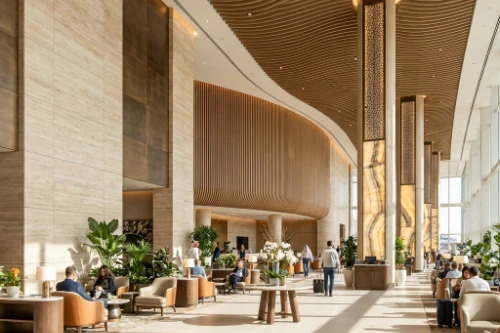

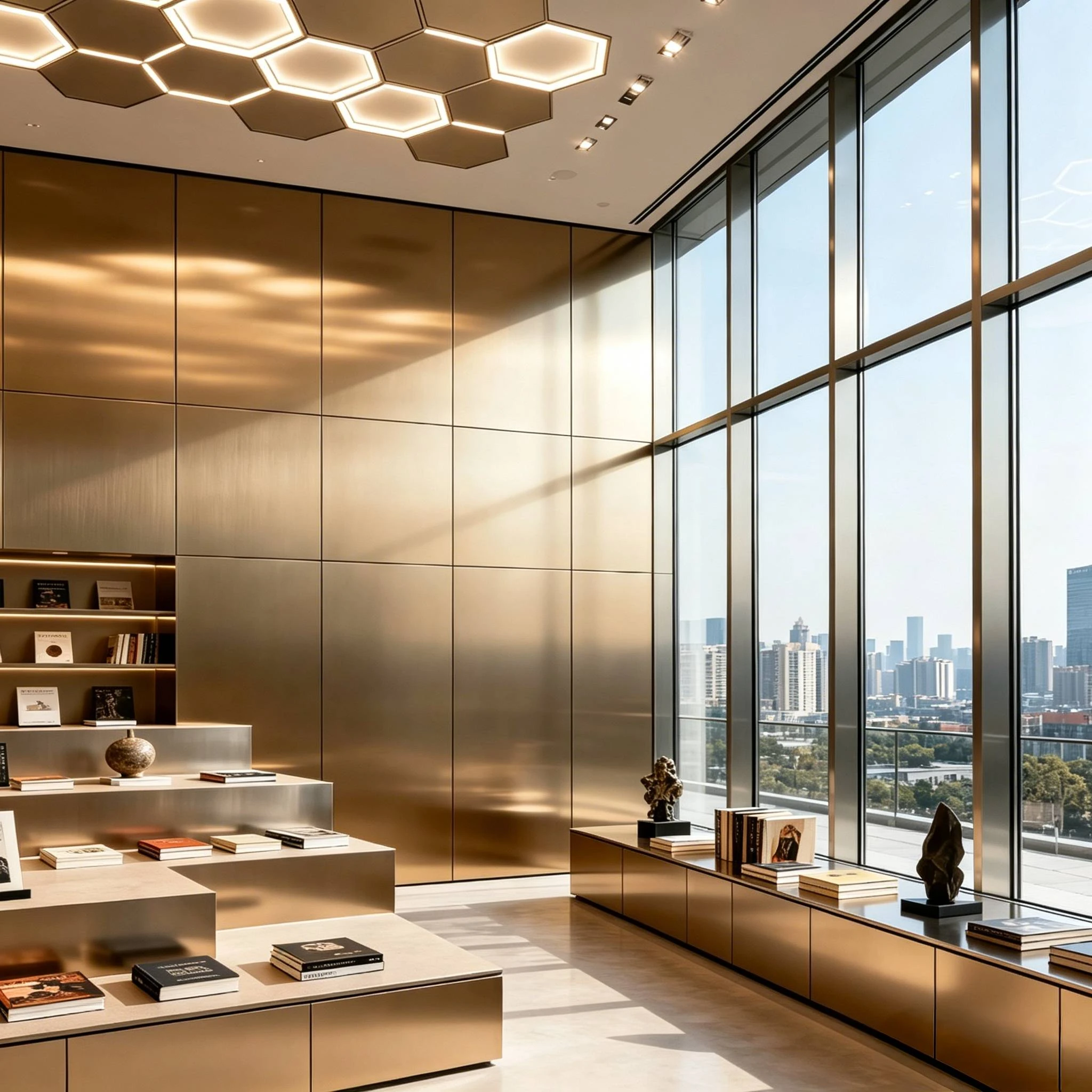

Interior Decoration

Partition walls, feature walls, suspended ceilings, column cladding, elevator cabs, door.

Lightweight, flat, easy to install, rich finishes, Aesthetic, easy to clean.

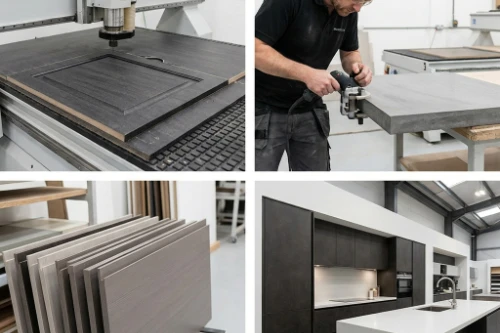

Door Panels & Furniture

Interior doors, cabinet doors, wardrobe back panels, furniture countertops;

Lightweight, flat, moisture-proof, warp-resistant.

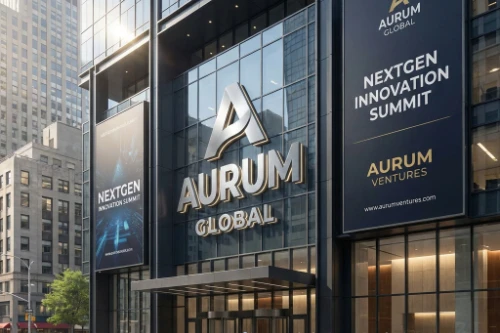

Signage & Advertising

Outdoor billboards, lightbox backing, exhibition panels, signs;

Flat, lightweight, easy to screen print, weather-resistant.

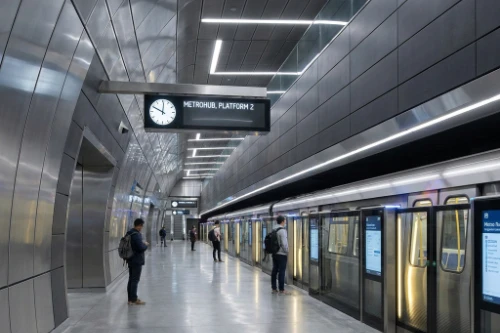

Transportation

High-speed rail interiors, subway car interiors, marine bulkheads, RV side panels;
Industrial Applications

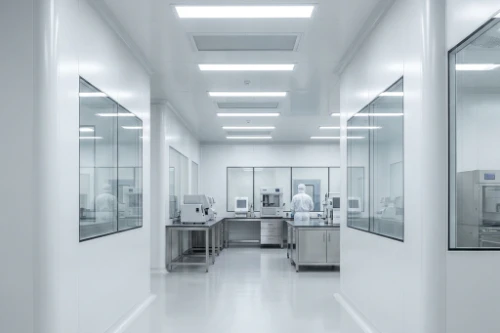

Equipment enclosures, cleanroom wall panels, equipment room partitions;

Flat, easy to fabricate, chemical-resistant.
Others

Stage backgrounds, photography studios, temporary structures, sales offices;

Fast assembly, reusable

Metal Panel System Accessory Table (Integrated Solutions for Diverse Scenarios, Inquiries Welcome)

Category	Product Name	Features & Advantages	Relationship with Metal Panel
1. Basic Metal Sheets	Solid Aluminum Sheet	Easy to bend and punch; ideal for complex 3D shapes; relatively lower cost.	Complementary: Use Solid sheets for complex geometry and AHP for large, ultra-flat surfaces.
	Stainless Steel Decorative Sheet	Extreme hardness and corrosion resistance; available in mirror, brushed, or embossed finishes.	Supplementary: Used for high-traffic areas such as baseboards, elevator halls, and ground-floor walls.
	Titanium Zinc / Copper Plate	Extremely long lifespan; develops a natural patina over time; premium aesthetic.	Competitive / Supplementary: Used for heritage renovations or ultra-high-end landmark roofing.
2. Functional Sandwich Panels	Metal Insulated Sandwich Panels	Pre-integrated with Rockwool or PU; combines structure, fireproofing, and insulation.	Competitive: The primary choice for industrial warehouse walls due to extremely fast installation.
	Corrugated Composite Panel	Lighter and lower cost than honeycomb panels, though surface flatness is slightly inferior.	Supplementary: Ideal for weight-sensitive applications like ceilings or indoor feature walls.
3. Decorative Non-Metallic Panels	Terracotta Panels	Natural texture with warm, fadeless colors; excellent breathability.	Complementary: The combination of metal and terracotta is a mainstream trend in modern facades.
	Fiber Cement Board	Excellent fire performance; provides an industrial "fair-faced concrete" aesthetic.	Complementary: Used for industrial interior styles or as a substrate/liner for metal panels.
	Stone Honeycomb Composite Panel	Ultra-thin natural stone veneer backed by aluminum honeycomb; significantly reduces weight.	Extension: Your aluminum honeycomb cores can be supplied directly to stone composite manufacturers.
4. Roofing System Materials	Standing Seam Roofing System	Superior waterproofing; adaptable to various slopes and complex curvatures.	Supplementary: Facade clients often require integrated roofing solutions during the procurement phase.
	Profiled Steel Sheet	The most common material for industrial roofing and internal linings.	Basic Support: Used for auxiliary buildings or secondary surfaces with lower aesthetic requirements.
5. Translucent Materials	Architectural Curtain Wall Glass	Low-E insulated glass providing natural light and transparency.	Complementary: Metal panels and glass are usually installed alternately to create "solid and void" visual effects.
	Polycarbonate (PC) Sheet	Lightweight, translucent, and impact-resistant; suitable for irregular skylights.	Complementary: Used for the translucent sections of metal canopies or skylight systems.
6. Interior Specialty Substrates	Calcium Silicate / Gypsum Board	Universal interior substrates used for fire-rated partitions and walls.	Complementary: Serves as the necessary backing or liner wall before the installation of metal decorative panels.
